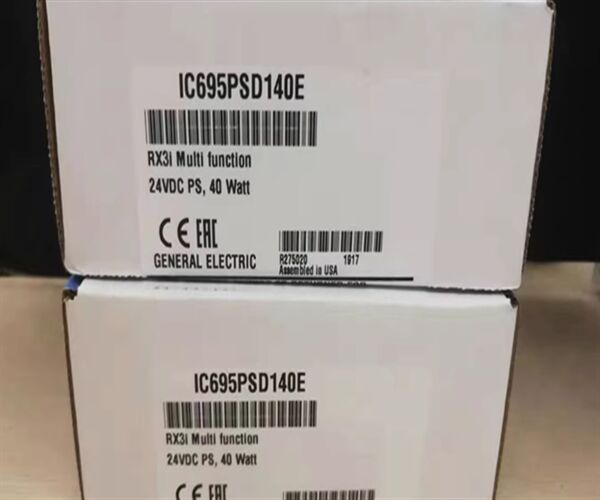

IC695PSD140 | GE Fanuc | Multipurpose Power Supply Modules
Description of IC695PSD140
The GE Fanuc Emerson IC695PSD140 is a high-efficiency power supply that delivers a power of 40 Watts. The IC695PSD140 supports an input voltage range from 18 to 30 volts DC and delivers three (3) different output voltages with different electrical powers: 3.3 Volts DC with an electrical power of 30 Watts, 5.1 Volts DC with an electrical power of 30 Watts, and 24 Volts DC with an electrical power of 10 Watts. The IC695PSD140 includes single fuse protection and has four (4) LED status indicators and an on/off output switch at the front side. This power supply supports an overcurrent of 7 Amperes on the 5 Volts DC output and an overcurrent of 10 Amperes on the 3.3 Volts DC output. The IC695PSD140 terminals for ground, ±24V power, and MOV can be wired individually with 14 to 22 AWG cable.
The IC695PSD140 supports a maximum input power of 60 Watts with DC input and an inrush current of 4 Amperes within a short time of 100 milliseconds. The IC695PSD140 delivers a total electrical power of 40 Watts and has a holdup time of ten (10) milliseconds. The IC695PSD140 has a door to cover and protect the user from accidental shock hazard. The IC695PSD140 can be easily installed alone in an RX3i universal backplane as either a single backplane power supply or with up to three (3) other multipurpose power supplies. This power supply weighs approximately 250 grams (0.55 pounds) while shipping and operates at zero (0) to 60 degrees Celsius (32 to 140 degrees Fahrenheit) for industrial applications.
Part number IC695PSD140 is an automation RX3i PacSystem manufactured by GE Fanuc. This device comes with four (4) different light-emitting diode (LED) indicators. The color of the LED that indicates power can be amber or green, while red is the color for the LED that indicates a power supply fault. The amber indicator is also used to indicate overload and over temperature errors. All of the LED Indicators are used to display the current status of the module. 24 volts DC, or direct current, is the current nominal voltage rating. Eighteen to thirty (18 to 30) volts direct current is the input voltage range on this module. 40 (forty) watts maximum is the output power rating on this module. Using all of its three (3) outputs, the IC695PSD140 can generate a maximum output rated power of forty (40) watts. However, isolation is not provided. This module should not be used with other power supply modules, such as the IC695PSD040 or the IC695PSA040. Also, it must not be used in the increased capacity mode, or the redundant mode. This device supports installation using the RX3i universal backplane.
As stated before, the IC695PSD140 power supply module must not be used with either the IC695PSD040 or the IC695PSA040 power supply module. This is applicable for especially the increased capacity mode and the redundant mode. If users fail to comply with these requirements, they might end up causing serious damage to the module. The terminal current rating on this module is 6 amperes. 5.1 Volts Direct Current is the Output Current Rating for this module.
Technical Specifications of IC695PSD140
| Brand |
GE Automation Fanuc / Emerson Automation |
| Series |
24 VDC, 40 Watts, multi-purpose power supply for Rx3i PacSystem |
| Part Number |
IC695PSD140 |
| Power Supply Type |
DC input power supply |
| Load Capacity |
40 Watts |
| Nominal Input |
24 VDC |
| Input Voltage Range |
18 to 30 VDC |
| Input Power |
60 Watts maximum at full load |
| Inrush Current |
4 Amperes, 100 milliseconds maximum |
| Output Capacities |
+5,1 VDC, 30 watts / +3,3 VDC, 30 watts / 40 Watts maximum total of both outputs. |
| Output Voltage |
5.1 VDC: 5.0 VDC to 5.2 VDC (5.1 VDC nominal) / 3.3 VDC: 3.1 VDC to 3.5 VDC (3.3 VDC nominal) |
| Number of Daisy-Chained PSD140 Supplies / Number of PSD140 Supplies in Universal Backplane |
Up to 4 / Up to 4 |
| Current per Terminal |
6 Amperes |
| Overcurrent |
5 VDC output: 7 A maximum / 3,3 VDC output: 10 A maximum |
| Output Current |
5.1 VDC: 0 to 6 Amperes / 3.3 VDC: 0 to 9 Amperes |
| Isolation (input to backplane) |
None |
| Ripple (all outputs) / Noise (all outputs) |
50 mV / 50 mV |
| Weight |
250 g (0.55 lb) |
